CARRIERS

Carriers


Load bar carriers are designed to allow the ETC system to convey individual loads of up to 120 lbs.

The Single Load Bar Carrier has a capacity of 60 lbs.

The Double Load Bar Carrier has a capacity of 120 lbs.

The V-Carrier (vertical carrier) is used to maintain track clearance of loads on sharp inclines. It has a capacity of 30 lbs.

Rotating Carrier: When installed with a rub rail, the turning action is continous during contact.

Note: For special load bars, carriers, and document handling attachments, please contact our sales department.



Part No. Description
2201 Single Load Bar Carrier
2202 Double Load Bar Carrier
2203 "V" Carrier Assembly
2204 Rotating Carrier

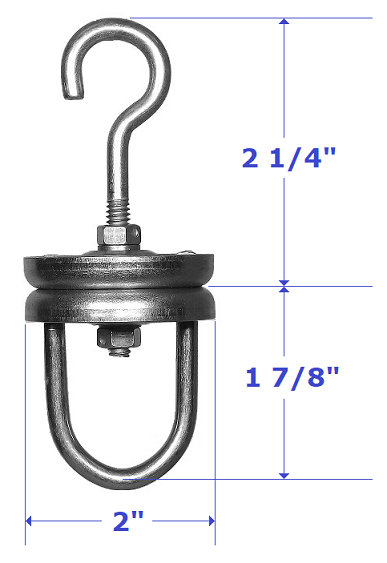

PART NO. 2204

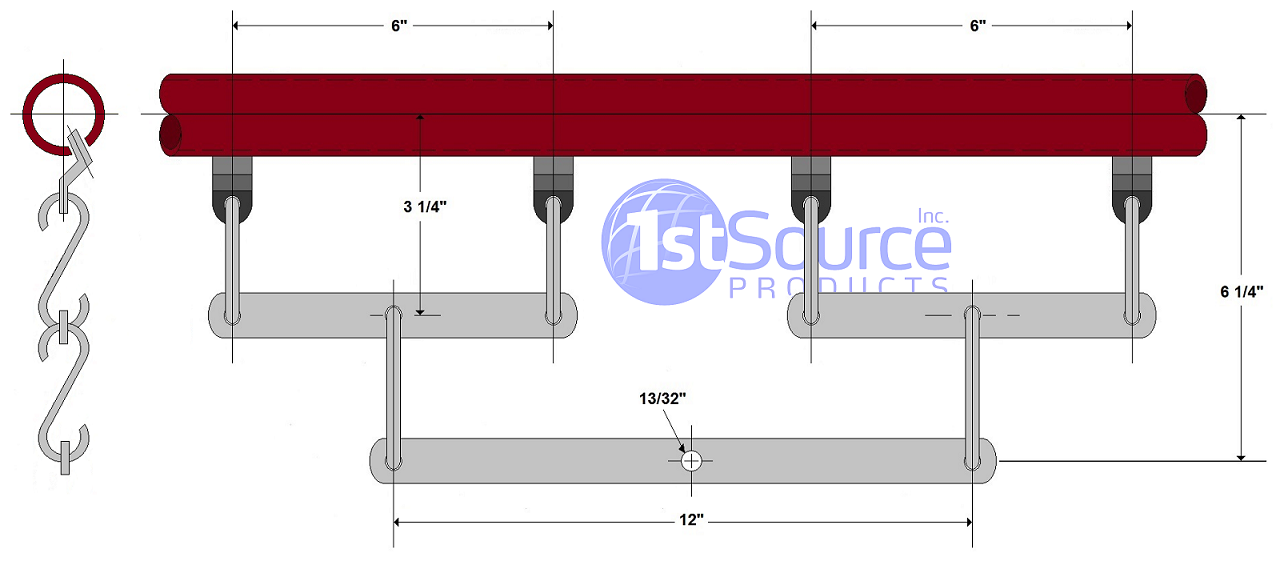

PART NO. 2202

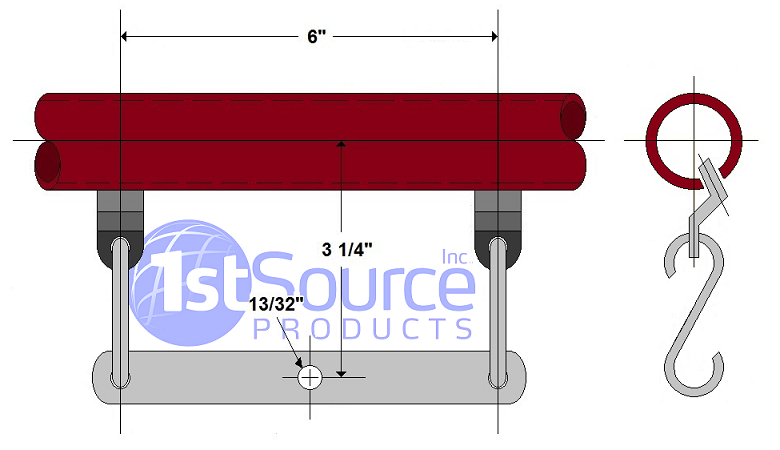

PART NO. 2201

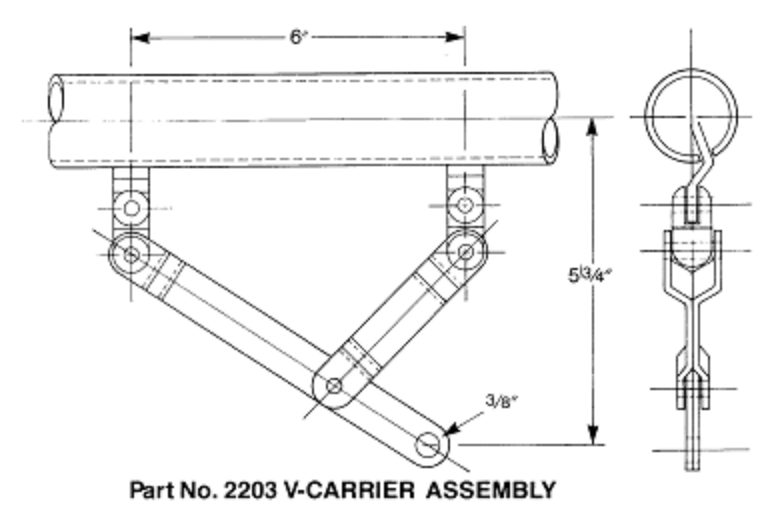

PART NO. 2203







PURCHASING DESCRIPTION
General form: Part No./Description
Example: Part No. 2201 - Single Load Bar Carrier



Contact our sales department.
